NCZMXK -503-3-S CNC Busbar Machine
Fenghua CNC busbar machine is an upgraded 3-in-1 busbar processing machine designed for copper and aluminum busbar proce…

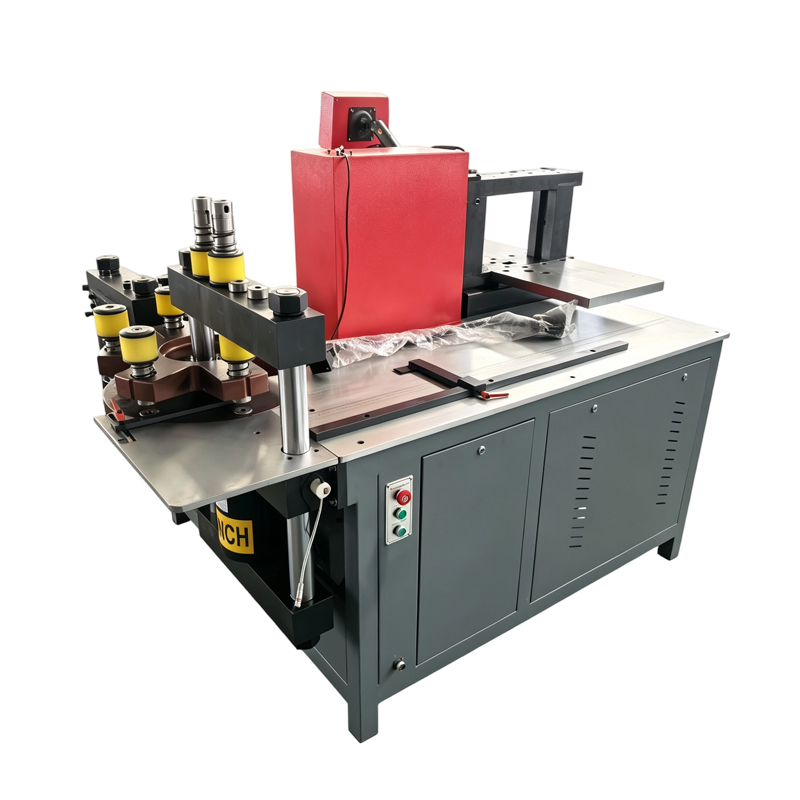

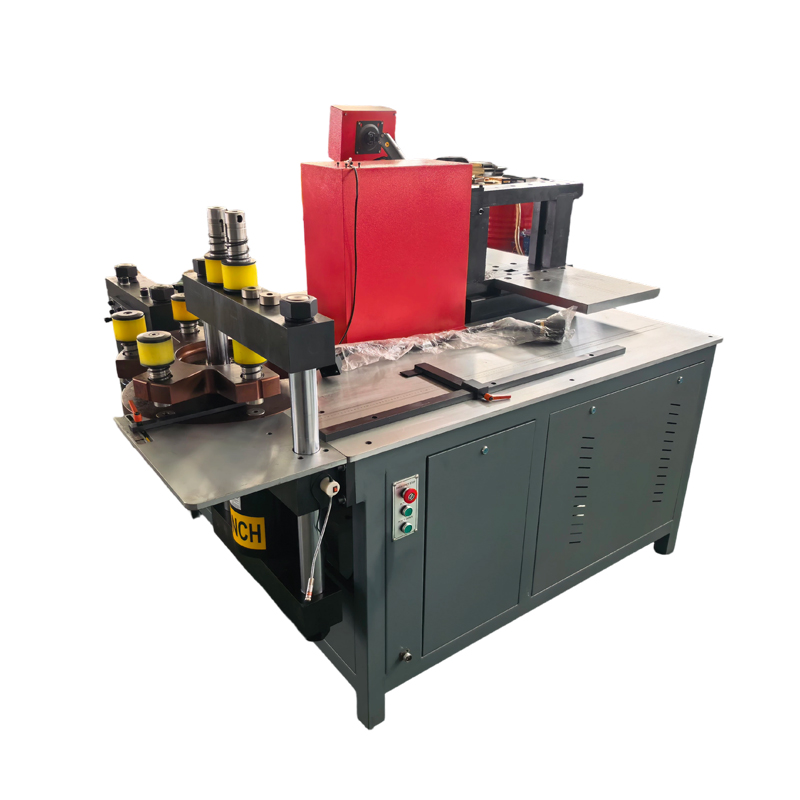

Product Gallery
- Category : 3-in-1 Busbar Processing Machine

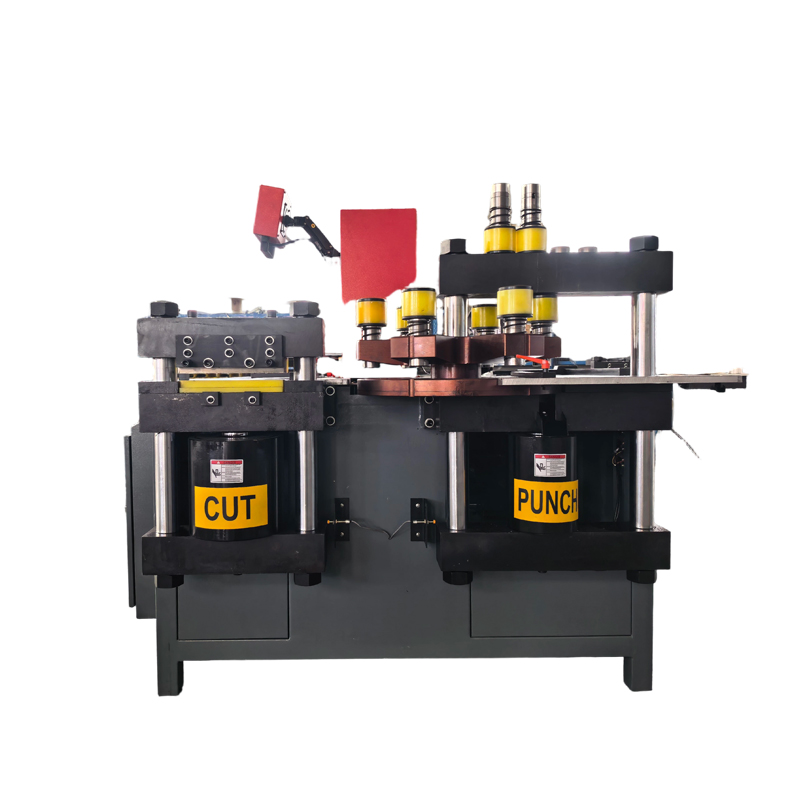

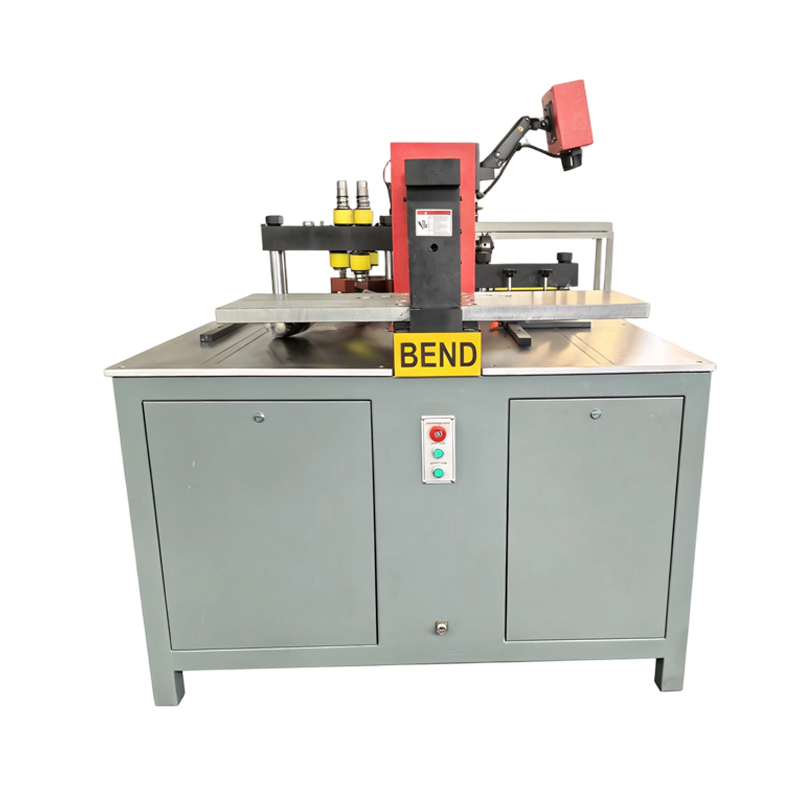

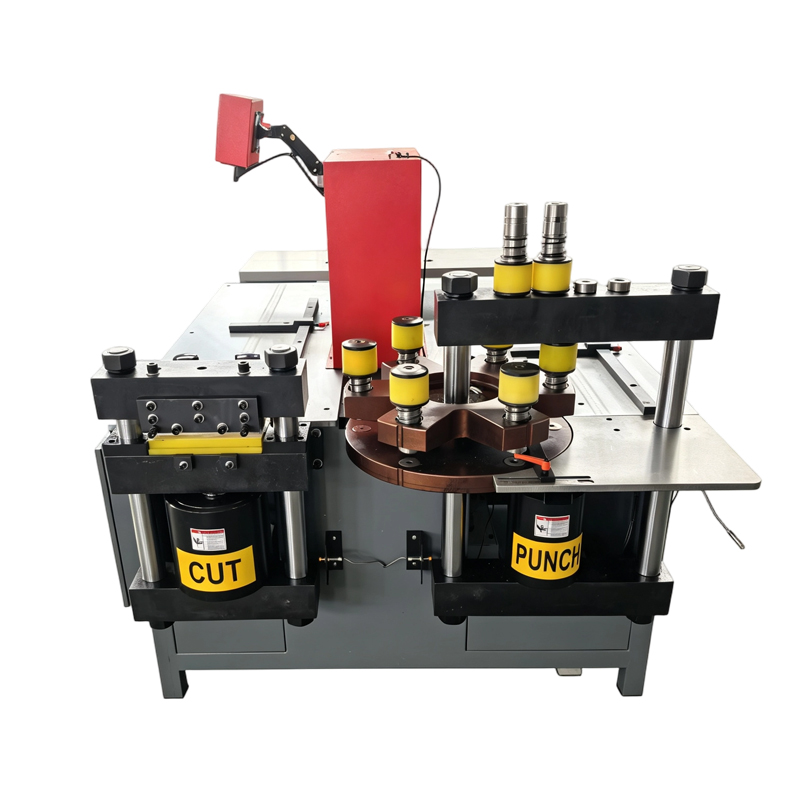

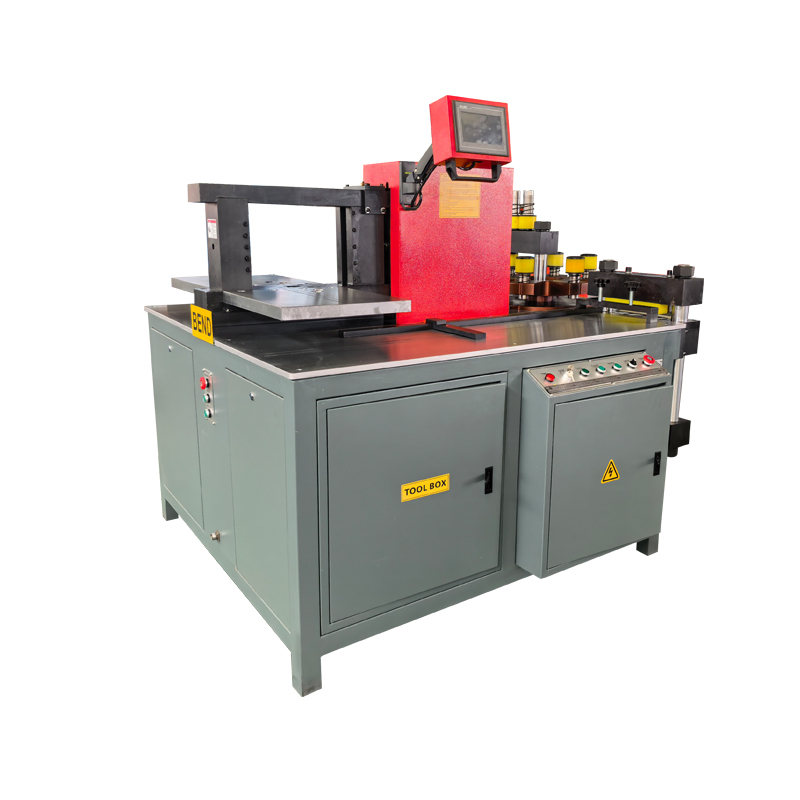

MX-503BSSK Copper Busbar Processing Machine
Fenghua CNC copper busbar processing machine integrates punching, cutting, and bending functions into one machine. Designed for copper and aluminum busbar processing, it provides stable and efficient solutions for distribution cabinets, switchgear, and electrical equipment manufacturers.
Product Description
The copper busbar processing machine is a high-efficiency three-station busbar processing machine designed for batch processing of copper and aluminum busbars. It integrates punching, shearing, and bending functions into one machine. The machine can process busbars up to 260 × 16 mm and is equipped with a 500 kN hydraulic cylinder. It adopts a stable and reliable hydraulic power system to provide continuous and stable power for punching, shearing, and bending operations.
The copper busbar processing machine features strong processing capability, stable operation, and flexible operation. It can meet the needs of distribution cabinet, switchgear, power equipment, and electrical equipment manufacturers for continuous processing of busbars in different specifications.
Parameters
The following are the standard configuration parameters of the Fenghua CNC MX-503BSSK Copper Busbar Processing Machine. Different configurations can be selected according to actual processing requirements.
| Function | Parameter | MX-503BSSK |
| Punching Unit | Maximum Punching Force | 500 kN |
| Punching Diameter Range | φ4.3–φ34 mm | |
| Maximum Punching Thickness | 16 mm | |
| Maximum Punching Width | 260 mm | |
| Shearing Unit | Maximum Shearing Force | 500 kN |
| Maximum Shearing Thickness | 16 mm | |
| Maximum Shearing Width | 260 mm | |
| Bending Unit | Maximum Bending Force | 500 kN |
| Maximum Bending Thickness | 16 mm | |
| Maximum Bending Width | 260 mm | |
| Bending Accuracy | ±0.2° | |
| Horizontal Bending | Maximum Width | 120 mm |
| Maximum Thickness | 12 mm | |

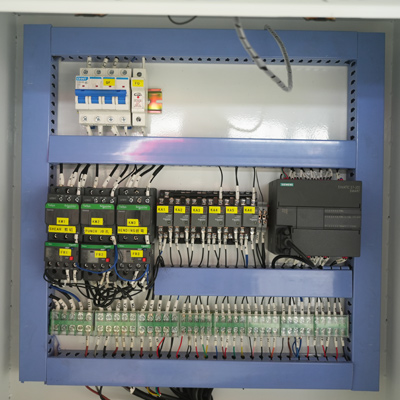

| Other Parameters | PLC System | Siemens |
| Positioning Method | Manual | |

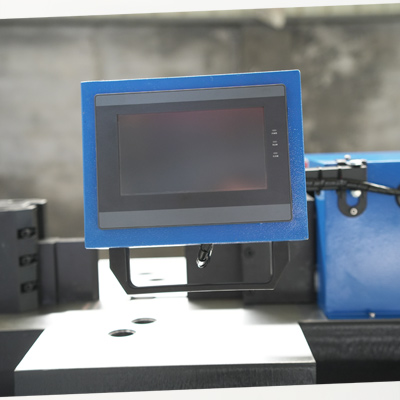

| Control System | PLC + Touch Screen | |
| Number of Touch Screens | 1 | |
| Motor Power | 3 × 5.5 kW | |
| Standard Voltage | 380 V / 50 Hz | |
| Overall Dimensions | 1920 × 1560 × 1450 mm | |
| Machine Weight | 1.9 T |
Product Video
Product Features

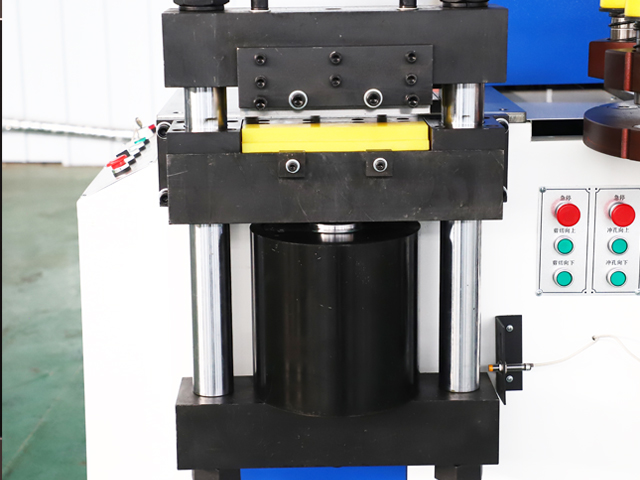

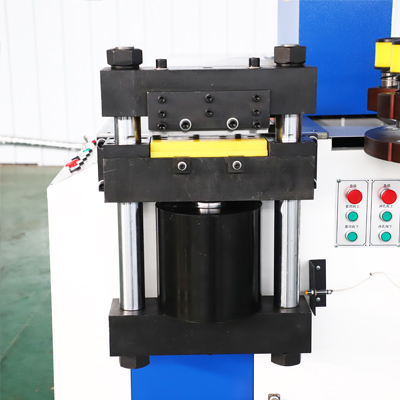

500 kN Hydraulic Power System for Continuous Processing
The machine adopts a 500 kN hydraulic cylinder to provide stable power output for the punching, shearing, and bending units, meeting the requirements for continuous processing of copper and aluminum busbars.

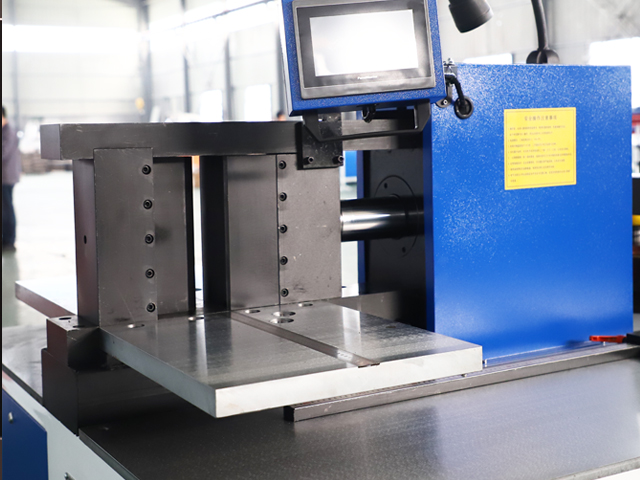

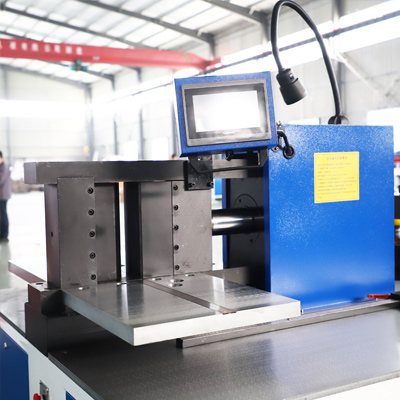

Closed Bending Structure for Improved Bending Stability
The machine adopts a closed bending structure to improve overall rigidity and force stability during the bending process, ensuring stable busbar bending and meeting the requirements of continuous batch processing.

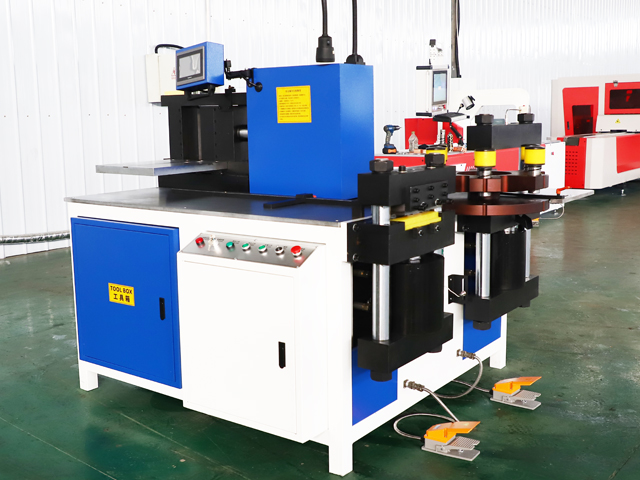

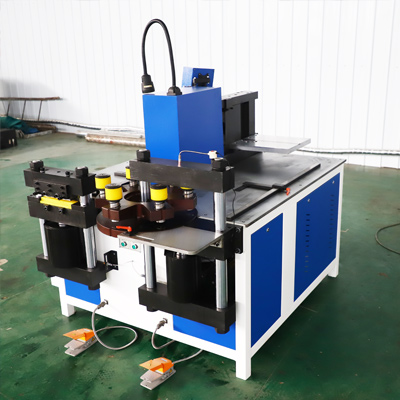

Independent Processing Units for Improved Production Efficiency
The punching, shearing, and bending units operate independently and can be flexibly arranged according to production requirements, improving machine utilization.
Molds and Accessories

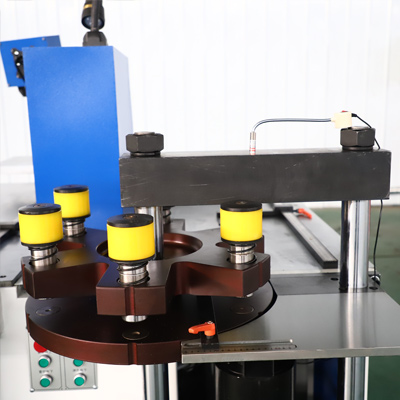

Standard Dies Equipped with the Main Machine | |
Punching Dies | φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |

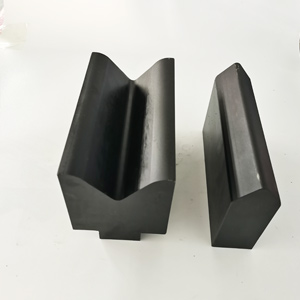

Bending Dies | Small Flat Bending (R3), Large Flat Bending (R5), Horizontal Bending (R80 or R50), U-shaped Bending |
Shearing Die | 1 set |
Embossing Die | 1 set |
Other Accessories | |

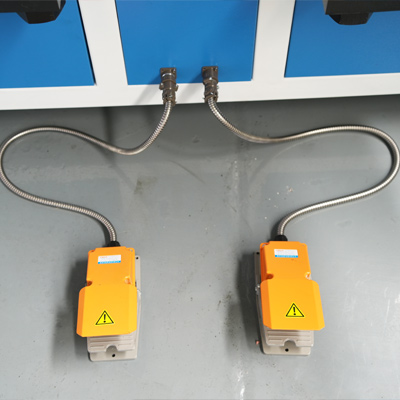

Foot Pedal Switch | 3 pcs |
Lubrication Device | 1 set |
Hex Key Set | 1 set |
Proximity Switch | 1 pc |
Relay | 1 pc |
Grease Gun | 1 pc |
Laser Light | 1 pc |

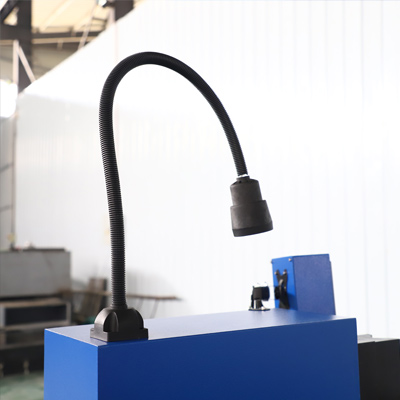

Work Light | 1 pc |
Punch Pin | 1 pc |
