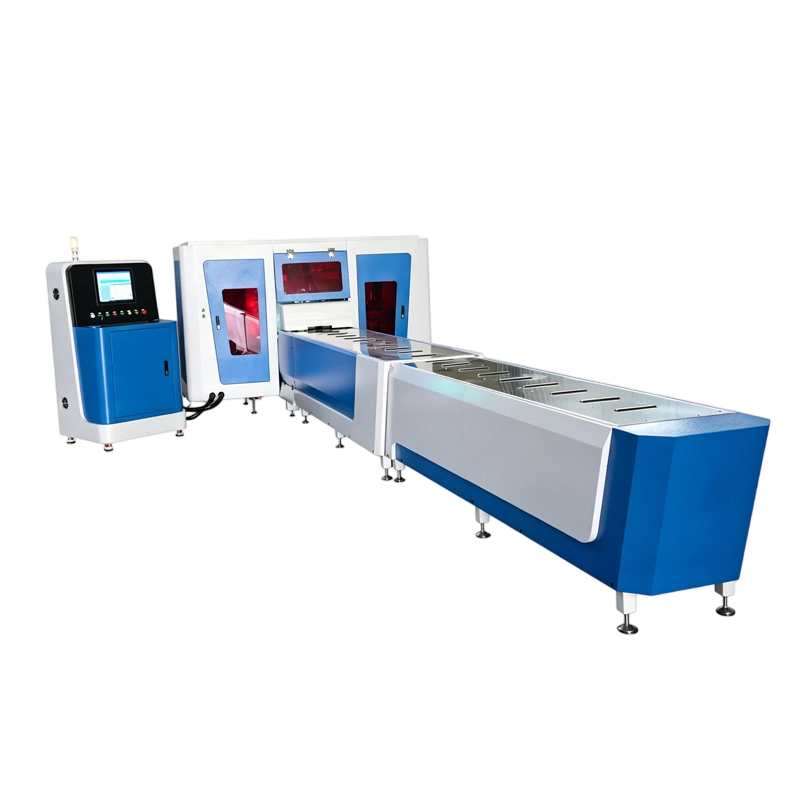

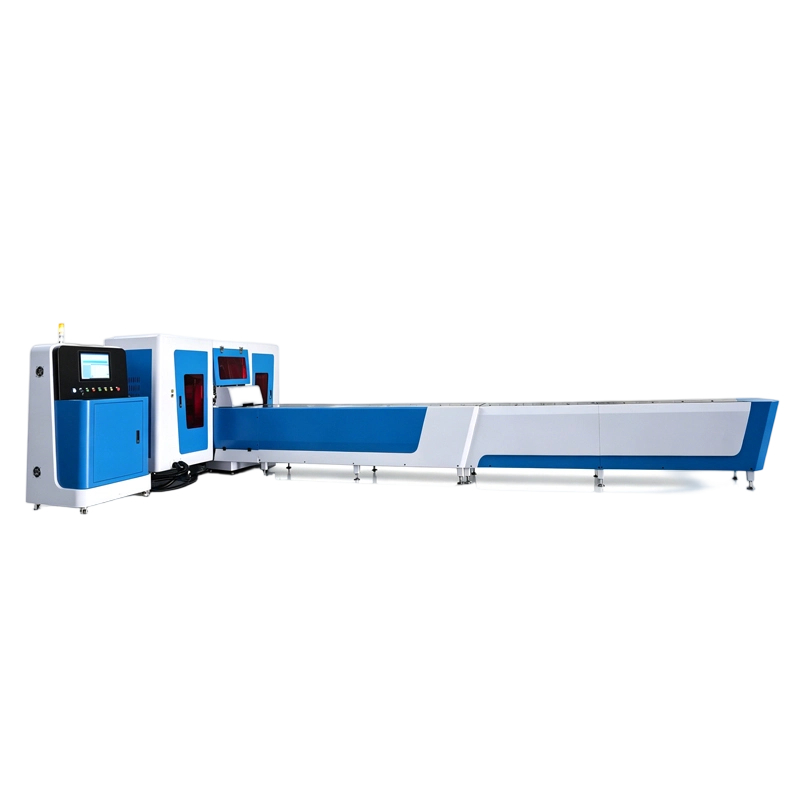

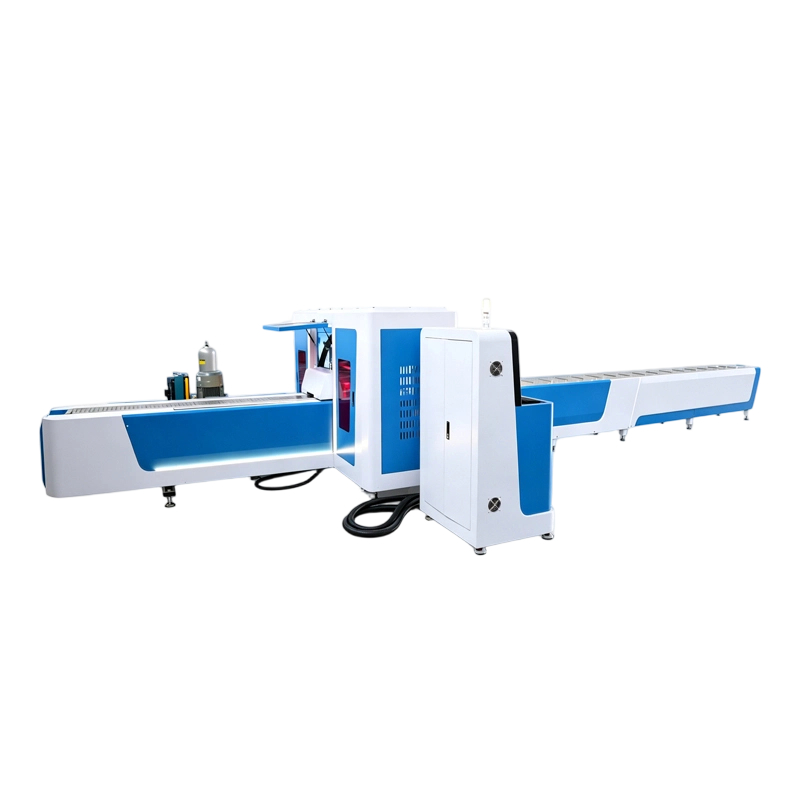

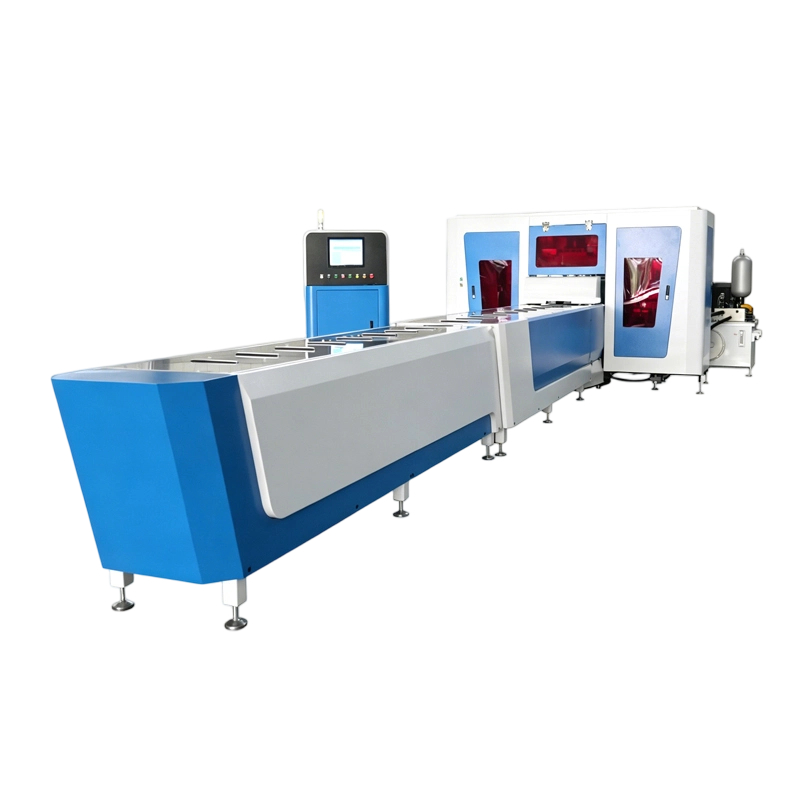

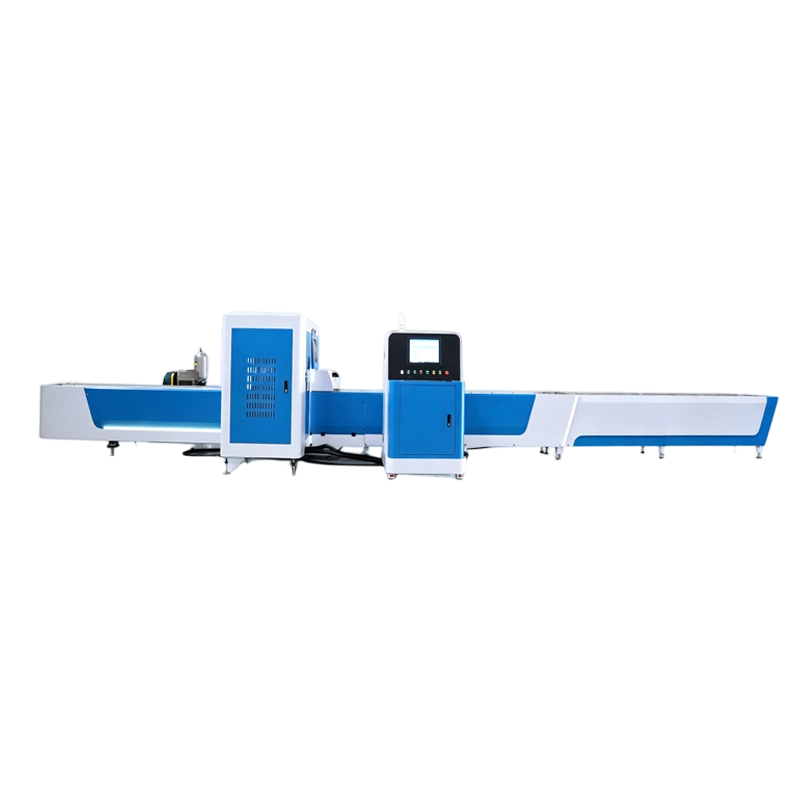

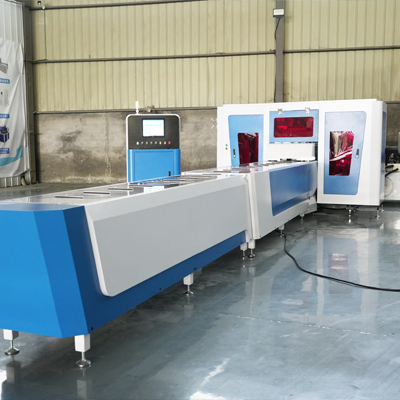

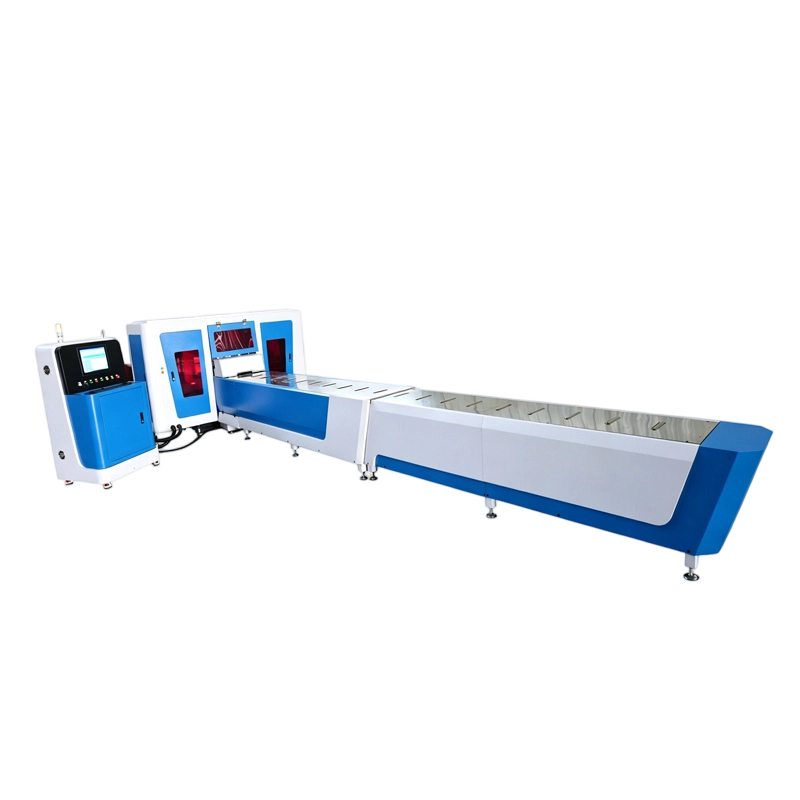

CJ-MX703 CNC Busbar Punching and Shearing Machine

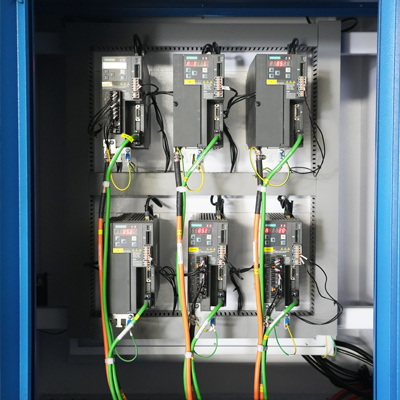

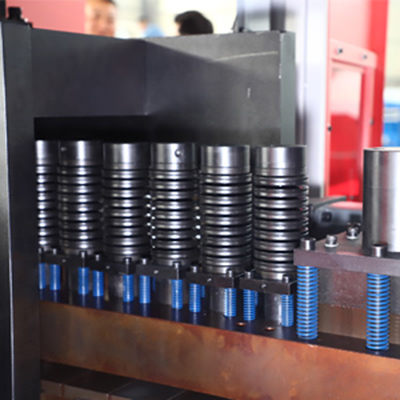

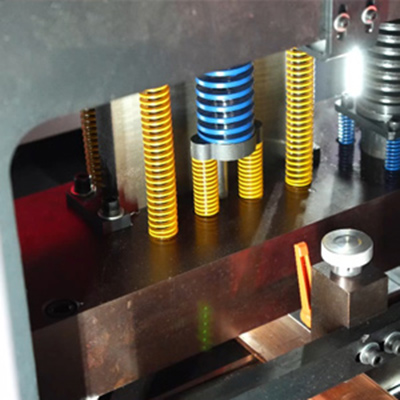

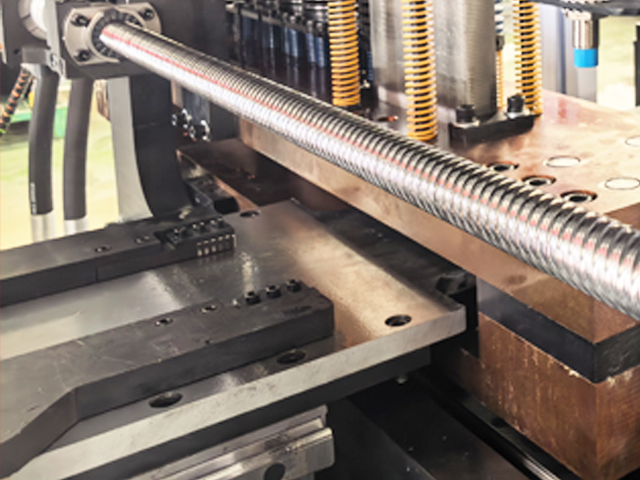

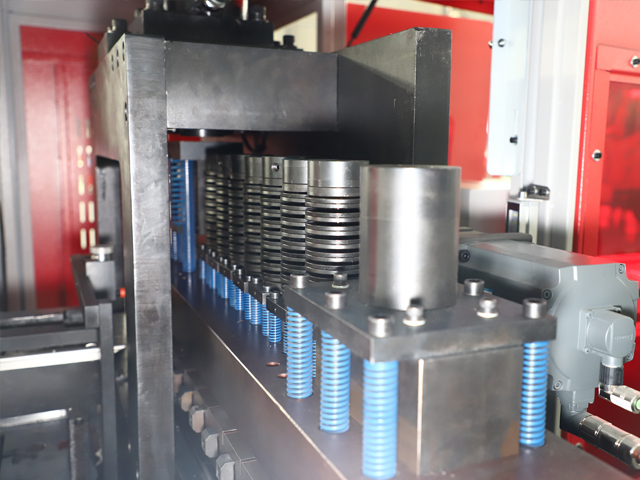

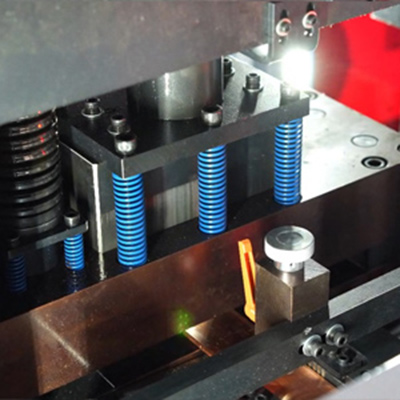

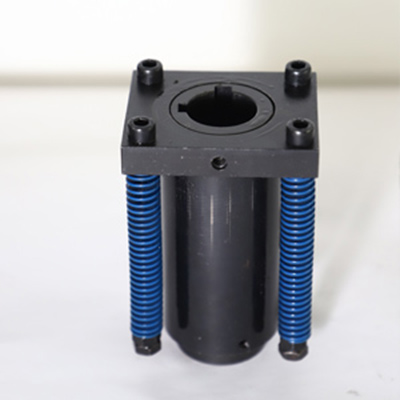

The CJ-MX703 CNC busbar punching and shearing machine is designed for continuous punching and shearing of copper and aluminum busbars. It adopts a single-row tool magazine structure and is equipped with 8 punching dies and 1 shearing die, meeting the requirements for continuous processing of busbars with different hole diameters. The machine is equipped with 6 servo systems, which respectively control feeding, discharging, the X1/X2 main and auxiliary power clamps, tool magazine movement, and punch striking. All systems work together to automatically and continuously complete busbar punching and shearing operations, making the machine suitable for batch busbar processing and large electrical manufacturers.

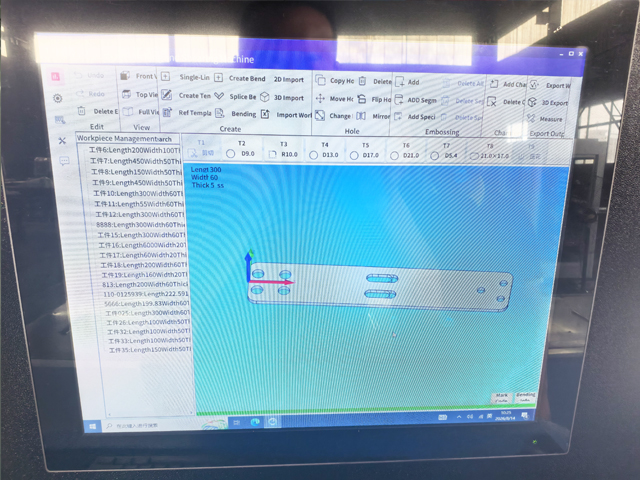

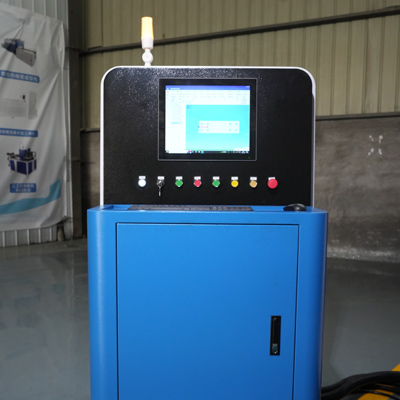

The CNC busbar punching and shearing machine adopts the German Siemens 808D CNC system and is equipped with independently developed drawing and programming software. Users can directly create and edit 3D graphics through the software and generate corresponding processing programs. It also supports importing CAD drawings through shared folders or file transfer, and the system can automatically generate processing programs based on drawing information. The generated programs can also be manually created, modified, and edited according to actual processing requirements, improving programming efficiency and operational flexibility for busbar processing.

The following are the standard configuration parameters of the Fenghua CNC CJ-MX703 CNC Busbar Punching and Shearing Machine. Different configurations can be selected according to actual processing requirements.
